Application
Product Overview

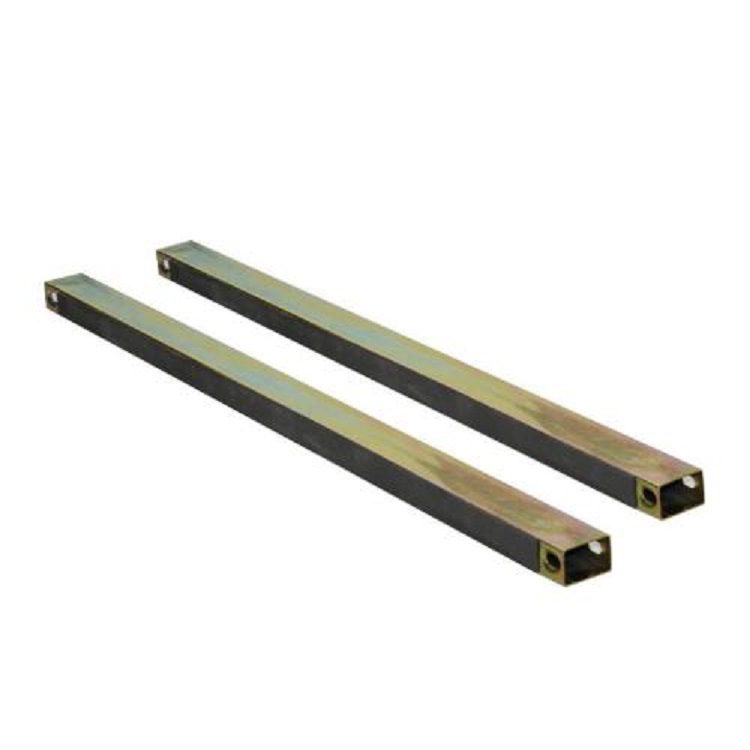

Our raised floor stringers (cross beams) form the horizontal framework of any access floor system. They lock into pedestal heads to provide lateral stability, precise panel positioning, and even load transfer across the entire raised floor. Manufactured from high-strength roll-formed steel with precision-machined ends for fast, tool-free snap-in or screw-fixed assembly.
Wall Thickness Options – Select by Application
| Thickness | Grade | Recommended Use |
|---|---|---|
| 0.6 mm | Standard | General-purpose raised floors in offices, retail spaces, and light commercial buildings. |
| 0.7 mm | Regular | Default choice for most data centers and server rooms. This is the standard thickness used with 35% ventilated panels. |
| 0.8 mm | Heavy-duty reinforced | Suitable for high-traffic zones, heavy equipment rooms, and floors subject to high point loads. |
| 0.8 mm with black coating | Ceramic-floor compatible | Designed specifically for ceramic-tiled access floors. The black anti-corrosion coating protects against abrasion and moisture, extending service life in demanding environments. |
| 1.0 mm | Military-grade / Ultra-heavy-duty | Engineered for defense facilities, command centers, and mission-critical installations where maximum structural integrity is mandatory. Commonly paired with ceramic-faced panels. |
Key Features
-
Precision fit – Manufactured to tight tolerances for seamless integration with standard 600×600 mm or 500×500 mm pedestal grid systems.
-
Corrosion resistance – Zinc-plated or black-coated finishes prevent rust in humid underfloor environments.
-
Quick installation – Pre-punched holes and notched ends enable fast clip-in assembly without specialized tools.
-
Load-rated – Each thickness is performance-tested to match corresponding panel load classes (light, medium, heavy, and extra-heavy duty).
Why Choose Our Stringers?
-
System-matched – Engineered to work flawlessly with our full range of ventilated, solid, and ceramic access floor panels.
-
Cost-efficient – Select the exact gauge you need — no over-specification or wasted expense.
-
Code compliant – All profiles meet or exceed international raised floor structural standards (ASTM / CEN equivalents).
-
Custom lengths – Standard spans of 600 mm and 1200 mm are available, with custom lengths offered upon request.
Typical Applications by Thickness
-
0.6 – 0.7 mm: Office buildings, IT server rooms, telecommunications closets
-
0.8 mm (plain): Data centers, UPS rooms, heavy storage areas, workshop floors
-
0.8 mm (black coated): Ceramic-tiled floors in wet areas, laboratories, food processing plants, cleanrooms
-
1.0 mm: Military bunkers, seismic zones, high-security data centers, aircraft hangars, government facilities
Ordering Information
Please specify when ordering:
-
Wall thickness (0.6 / 0.7 / 0.8 / 0.8 coated / 1.0 mm)
-
Length per piece (standard 600 mm, 1200 mm, or custom)
-
Surface finish (zinc-plated / black-coated / plain steel)
-
Total quantity (pieces or linear meters)
