Product Overview
Our aluminum alloy anti-static access floor panels are precision-cast from monolithic aluminum, offering a homogeneous, non-laminated structure that eliminates the risk of surface delamination – a critical advantage in cleanroom applications where particulate contamination must be minimized.
The all-cast aluminum construction provides excellent corrosion resistance, dimensional stability across temperature fluctuations, and a superior strength-to-weight ratio that simplifies handling and installation.
Each panel is manufactured to 600mm × 600mm × 55mm dimensions, compatible with standard raised floor pedestal and stringer systems.
Panel Types
| Type | Description | Point Load (min.) | UDL (min.) | Best For |
|---|---|---|---|---|
| Ventilated (Perforated) | Cast aluminum panel with perforations for underfloor airflow distribution | 300 kg | 1,800 kg/m² | Cleanrooms with underfloor HVAC, data centers, semiconductor fabs |

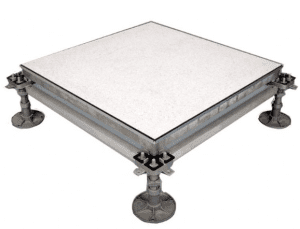

| Solid (Blind) | Fully solid cast aluminum panel – no perforations | 300 kg | 800 kg/m² | Office areas, equipment rooms, general cleanroom zones |
Note: Higher load capacities available upon request. The 55mm thickness serves as the base dimension; alternative thicknesses can be produced by machining down from the 55mm standard.
Surface Finish Options
| Finish | Description | Recommended Application |
|---|---|---|
| 2.0mm Anti-Static PVC (ESD) | Textured PVC sheet laminated to the aluminum surface – provides static dissipation and comfortable foot feel | Standard cleanrooms, electronics assembly, server rooms |
| Nickel-Chromium Plating (Bare Aluminum) | No surface laminate – cast aluminum body with electroless nickel-chromium plating for corrosion protection and a clean, metal finish | Pharmaceutical cleanrooms, food processing, harsh chemical environments – where laminates are not permitted |
| Stainless Steel Facing (Custom) | Stainless steel surface bonded to the aluminum core – combines aluminum's light weight with stainless steel's hygiene and durability | Medical facilities, laboratories, sterile processing areas |
Accessories – Pedestals & Stringers
| Component | Steel Option | Aluminum Option |
|---|---|---|
| Pedestal | Heavy-duty steel construction – maximum load capacity | Lightweight, corrosion-resistant aluminum – ideal for wet or humid environments |
| Stringer | Steel cross beams for structural rigidity | Aluminum cross beams – fully compatible with aluminum panels |
Both steel and aluminum accessory systems are available in multiple height ranges to suit different underfloor service zones.
Key Features
-
Monolithic cast aluminum construction – No laminated layers to delaminate; homogeneous structure ensures consistent performance
-
Corrosion-resistant – Aluminum body with optional nickel-chromium plating resists chemical attack and humidity
-
Anti-static / ESD-safe – Surface finishes (PVC, plating, stainless steel) provide reliable electrostatic discharge protection
-
High load capacity – Ventilated panels support up to 300kg point load and 1,800kg/m² UDL
-
Customizable thickness – 55mm standard; other thicknesses available by machining from standard base
-
Flexible surface options – Choose from PVC, nickel-chromium plating, or stainless steel to match hygiene and aesthetic requirements
-
Lightweight compared to steel – Easy to handle and install, reducing labour costs
Technical Specifications
| Specification | Detail |
|---|---|
| Panel Size | 600 × 600 mm |
| Standard Thickness | 55 mm |
| Material | Cast aluminum alloy (homogeneous / monolithic) |
| Ventilated Type – Point Load | ≥ 300 kg |
| Ventilated Type – UDL | ≥ 1,800 kg/m² |
| Solid Type – Point Load | ≥ 300 kg |
| Solid Type – UDL | ≥ 800 kg |
| Surface Finish Options | 2.0mm anti-static PVC / Nickel-chromium plating / Stainless steel |
| Accessory Materials | Steel or aluminum (pedestals & stringers) |
| Fire Rating | Class A1 (non-combustible) |
| Application | Cleanrooms, semiconductor fabs, data centers, laboratories |
Customization Information
-
Thickness variations: The standard 55mm thickness can be machined down to thinner dimensions upon request, adapting to specific floor height or weight constraints.
-
Surface customization: Beyond the standard PVC, plating, and stainless steel options, other surface treatments can be discussed for special projects.
-
Perforation patterns: For ventilated panels, hole size and layout can be adjusted to suit specific airflow requirements.
Typical Applications
-
Semiconductor cleanrooms (Class 100 – Class 100,000)
-
Pharmaceutical manufacturing facilities (cGMP-compliant)
-
Electronics assembly lines (ESD-sensitive)
-
Data centers and server farms
-
Medical device manufacturing
-
Research and development laboratories
-
Food processing areas (hygiene-critical)
-
Battery and energy storage facilities
Why Choose Our Aluminum ESD Flooring?
-
Zero delamination risk – All-cast construction outperforms particle-board or cementitious panels in cleanroom environments
-
Corrosion-proof – Aluminum naturally resists rust and chemical attack
-
Lifecycle value – High initial quality translates to lower long-term replacement costs
-
Fully compatible – Standard 600×600mm panel size works with existing pedestal grids
-
Choice of accessory materials – Steel for maximum strength; aluminum for lightweight corrosion-proof systems
Ordering Information
Please specify when ordering:
-
Panel type: Ventilated (perforated) or Solid (blind)
-
Surface finish: 2.0mm anti-static PVC / Nickel-chromium plating / Stainless steel
-
Accessory material: Steel or aluminum (pedestals + stringers)
-
Thickness: 55mm standard or custom thickness (machined)
-
Quantity (pieces or square meters)
-
Any special perforation or finish requirements
-
