Product Overview

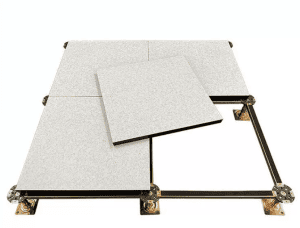

The wood-core anti-static raised floor features a high-density wood core with conductive surface treatment on both sides, surrounded by aluminum or black steel frames. It offers reliable static control and strong load-bearing capacity, making it an ideal choice for data centers, server rooms, and high-end office environments.

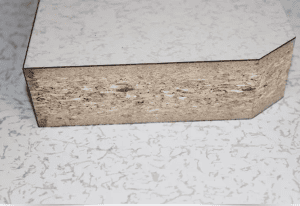

Product Structure
-
Top Layer: Anti-static HPL laminate – wear-resistant, stain-resistant, available in multiple finishes
-
Core Material: High-density wood fiberboard, treated for moisture and fire resistance
-
Bottom Layer: Conductive aluminum foil or galvanized steel plate for complete static dissipation
-
Edge Frame: Aluminum frame (traditional style) or black steel frame (new style) for enhanced strength and sealing
Specifications
Traditional Style (Aluminum Frame)
-
Size: 600×600×30mm / 600×600×32mm
-
Concentrated Load: 180kg
-
Uniform Load: 850kg/m²
-
Laminate: 0.7mm standard HPL

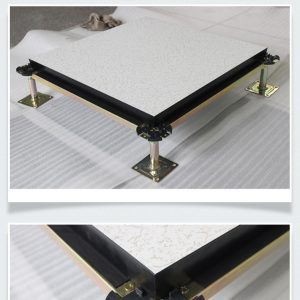

New Style (Black Steel Frame)
-
Size: 600×600×40mm (customizable)
-
Laminate: 1.2mm anti-static HPL
-
Bottom: Full steel sheet base – superior resistance to deformation
Applications
-
Data centers / Server rooms
-
Power dispatch & control centers
-
ESD-sensitive laboratories
-
High-end office network floor areas
Key Advantages
-
✅ Consistent anti-static performance with compliant system resistance
-
✅ High load capacity for heavy equipment installation
-
✅ Good interchangeability – easy to maintain and replace
-
✅ Aesthetic finish with various laminate color options
-
高强度木基防静电活动地板
产品概述：
木基防静电活动地板采用高密度木质基材，双面经防静电处理，四周由铝框或黑色钢框包裹，具有可靠的静电控制能力和优异的承载性能，是数据中心、服务器机房和高档办公环境的理想选择。
产品结构：
层级 材料 表层 防静电HPL贴面，耐磨、抗污，多种花色可选 基材 高密度木质纤维板，经防潮阻燃处理 底层 导电铝箔或镀锌钢板，实现完整静电泄放 封边 铝框（传统型）或黑色钢框（新型），增强强度与密封性 规格参数：
类型 规格 集中荷载 均布荷载 贴面 传统型（铝框） 600×600×30mm / 32mm 180kg 850kg/m² 0.7mm HPL 新型（钢框） 600×600×40mm（可定制） 定制 定制 1.2mm 防静电HPL 应用场景：
-
数据中心 / 服务器机房
-
电力调度与控制中心
-
防静电实验室
-
高档办公网络地板区域
核心优势：
-
防静电性能稳定，系统电阻达标
-
承载能力强，适用于重型设备安装
-
互换性好，易于维护更换
-
装饰效果佳，多种花色可选
-
